Hyperion 300

Hyperion 300

Industrial, 10-port managed industrial Ethernet switch with 2x 100M/1000M/2.5G FO SFP and 6x 100M/1000M FO SFP or 8/2x 10M/100M/1G RJ45 PoE÷PoE+, additional control and measurement interfaces, managed Gigabit Ethernet switch, optional with RS232 / 485 serial interfaces (with the possibility of supporting the GPRS modem for remote management via GSM network), digital inputs, relay outputs and a 1-wire interface.

10-port managed industrial Ethernet switch with 2x 100M/1000M/2.5G FO SFP and 6x 100M/1000M FO SFP or 8/2x 10M/100M/1G RJ45 PoE÷PoE+, additional control and measurement interfaces

Properties and Benefits

  • Available interfaces: up to 8x 10M/100M/1G RJ45 of which 2x 10M/100M/1G RJ45 and FO SFP are combo ports
  • Available interfaces: 2x 100M/1000M/2.5G FO SFPs.
  • Available interfaces: up to 6x 10M/100M/1G FO SFPs
  • ITU-T G.8032 compliant ring operation with < 20ms reconfiguration, up to 64 rings simultaneously
  • The following IEEE1588 v.2 (PTPv.2)-based precision time synchronization profiles are available in the HYPERION-30x.2: 1588 default, G.8265.1 and G.8275.1
  • NTP protocol in server/client mode and SNTP
  • Optional control and measurement functions: interfaces 2x RS232, 1x RS232/485 , 1-Wire (T/H), 2x digital input, 4x relay outputs (available in Hyperion-30x-3 version)
  • Support for an external MOD-EXT-IO module for increasing the number of I/O interfaces and DC voltage measurement (Module support available in Hyperion-30x-3 version. When using MODEXT-IO module, T/H sensor cannot be connected)
  • Save Energy with Energy Efficient Ethernet 'EEE' Technology
  • Radius - centralized authentication
  • Support for PROFINET Class A, DNP3 and DLMS protocols
  • Ethernet OAM support (Link OAM and Service OAM)
  • Access security SNMPv3, HTTPS, SSH
  • Additional optional security mechanisms
  • Operating temperature: -40 to +85°C when conditions are met
  • Rugged IP-30 DIN metal housing
  • Redundant DC power supply
  • AC power supply

Optional features

  • PoE÷PoE+ support up to 30W per port, power on all ports up to 240W, PoE watchdog

Optional features under the license

  • Extension in the IEEE 1588-2008v.2 (PTPv2) protocol for power profiles; synchronization for realtime power applications in accordance with IEEE C37.238-2011, C37.238-2017; IEC61850-9-3
  • Synchronous Ethernet G.8261 (only available version 30x. 2 )


Thanks to its reliability, Hyperion 300 is used in industries such as:

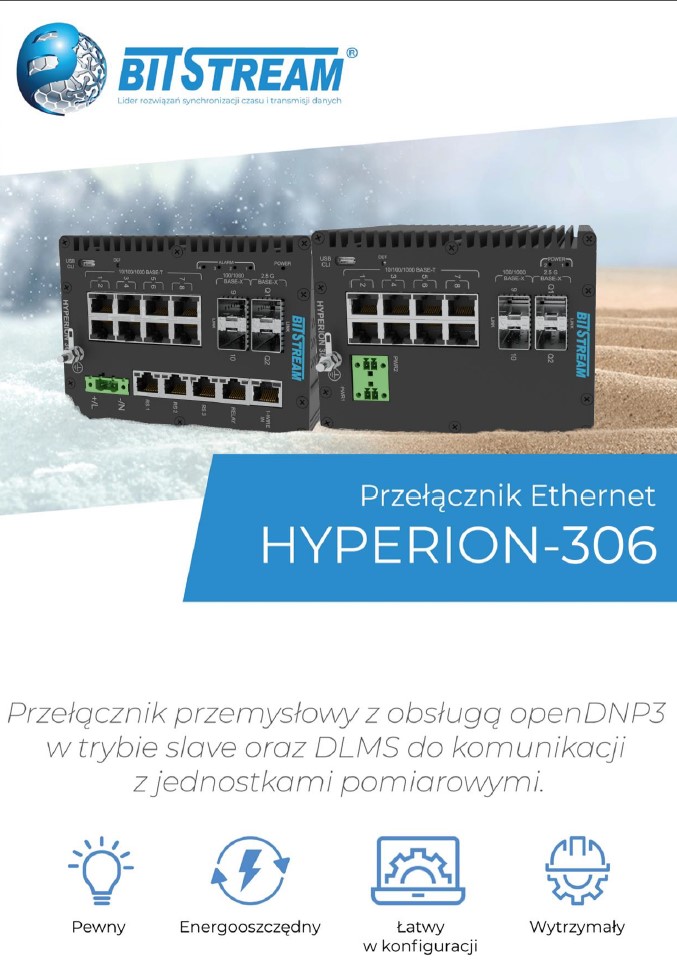

Catalog card

Ethernet Switch Hyperion-300

Product card

Haven’t found the answer to your bothering questions?

  • Supported transmission standards
    IEEE 802.3 10Base-T Ethernet
    IEEE 802.3u 100Base-TX Fast Ethernet
    IEEE 802.3u 100Base-FX Fast Ethernet Fiber
    IEEE 802.3ab 1000Base-T
    IEEE 802.3z Gigabit Fiber
    IEEE 802.3x Flow Control and Back-pressure
    IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
    IEEE 802.1p Class of Service (CoS)
    IEEE 802.1Q VLAN
    IEEE 802.1ad QinQ
    IEEE 802.1D- Spanning Tree Protocol (STP)
    IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)
    IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    IEEE 802.3ad Link Aggregation Protocol (LACP)
    IEEE 802.1x Port Based Network Access Protocol
    IEEE 802.3az EEE
    IEEE 802.3af/at typ 1/2 do 30W
  • Supported protocols
    IPv4, IPv6, ARP, ICMP, TCP, UDP, DNS,
    IGMP v1, v2, v3, MLD v1, v2, GMRP, GVRP,
    SNMP v1/v2c/v3,
    DHCP client/server,
    NTP client/server, SNTP,
    HTTP, HTTPS, Telnet, SSH v2, Syslog
    EtherNet/IP, SNMP Inform, LLDP, RMON,
    IEEE1588 PTP v2 (only available in 30x.2
    Synchronous Ethernet G.8261 (only available on 30x.2)
    MIB-II, Ethernet-Like MIB
    IEEE 802.1x Port Based Network Access Protocol, EAP, TACACS+, RADIUS, NAS
    OpenDNP3 (IEEE-1815, DNP3).
  • Supported standards, recommendations and directives EMC, safety *
    PN-EN 55011:2016
    PN-EN 55035:2017-09
    PN-EN IEC 62368-1:2020-11
    EMC 2014/30/EU
    LVD 2014/35/EU
    PN-EN 60825-1:2014-11
    IEC 61000-4-2
    IEC 61000-4-3
    IEC 61000-4-4
    IEC 61000-4-5
    IEC 61000-4-6
    IEC 61000-4-8
    IEC 61000-4-11
    IEC 61000-4-12
    IEC 61000-4-29
  • Ethernet interfaces
    Ethernet connectors: 2x SFP 100/1000M/2.5Gbps, 2/6x SFP 1002/1000Mbps, 8/2x RJ45
    • (in Hyperion-301 version: 2 RJ45/SFP ports – combo), (100Mbps speed on Optical Interface works
      only with optical SFP inserts)
    Matrix switching capacity: 20Gbps
    Forwarding: 17.9 Mpps
    QoS: Support for 8 physical queues, Weighted Round Robin algorithm and Strict Priority queuing.
    Priority settings based on: 802.1p PCP priorities, DSCP/ToS, port-based priority settings, TCP/UDP
    port number-based priority configuration capabilities
    VLANS: 4096 VLAN entries, 802.1Q, 802.1QinQ, private VLANs, VLAN translation.
    Bandwidth control: filtering for incoming traffic of Broadcast, Multicast, Unknown DA or all
    packets, outgoing traffic filtering for packets of all types, bandwidth limiting
    IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD
    snooping V1/V2
    RMON, MIB II, Port mirroring, DNS, IEEE802.1ab LLDP, LLDP-MED
    Syslog – cooperation with the syslog server,
    Port Mirroring: Monitoring traffic on selected ports
    IEEE 802.3az: Energy Efficient Ethernet, 4 power saving modes
    IEEE 802.1x Port Based Network Access Protocol, EAP, TACACS +, RADIUS – Authentication, Authorization and Accounting – AAA
    Port Trunk: IEEE 802.3ad LACP or static aggregation
    MAC address table: up to 8192 entries
    IEEE 802.1x Port Based Network Access Protocol, EAP, TACACS+, RADIUS – authentication,
    authorization and accounting functions – AAA
    Security: HTTP/HTTPS, SSL/SSH

    Network Redundancy:

    • ITU-T G.8032 Ethernet Ring (ERPS)
    • IEEE 802.1D Spanning Tree (STP)
    • IEEE 802.1D-2005 Rapid Spanning Tree Protocol (RSTP).
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • 1-wire interface
    Transmission rate 0 – 16.3 kbit/s
    Range ≤ 100m
    Connector: RJ-45
    Input dedicated to MOD-EXT-IO module or T/H sensor
  • RS232/485 interfaces
    UDP / TCP; server / client / virtualcom

    Transmission speed:

    • 0-115.2 kbit / s for RS232
    • 0-230 kbit / s for RS 485

    Interface type configuration:

    • 1x RS485 – 2/4 wire or 1x RS232
    • 2x port with RS232 interface
    Connector: RJ-45
  • Digital outputs
    Number of outputs – 4
    Type of outputs – “relay contact”
    Maximum switching current – 0.5A 48VDC
    Connector: RJ-45
  • Digital inputs
    Number of inputs – 2
    Galvanically isolated inputs
    Input type – dry contact
    Connector: RJ45
  • Power
    DC power supply, 12-60V VDC /0.95-0.16A (9.5W)
    Two power inputs, redundant power supply for DC power supply
    DC/AC power supply, 80-350VDC/75-240VAC (version available only without PoE function)
    Screw connector for AC or DC power supply
  • Management
    SNMP v1/2c/3, SSH
    HTTP / HTTPS protocol – management via a web browser
    “Privilege level” – permission level configuration – read / write, independently configured for many users
  • Environmental requirements
    Working temperature: -40 to + 85 ° C with a minimum air flow of 0.4 m / s
    Working temperature: -40 to + 70 ° C with a minimum air flow of 0.0m / s
    The working time at the maximum temperature of + 85 ° C is up to 16 hours
    Standard operating ambient humidity: 0 to 95% (non-condensing)
    Location type: class C in accordance with PN-EN 60870-2-2 – sheltered locations
    Protection class in accordance with IP-30
  • Physical features
    Can be mounted on a DIN rail
    Weight: 0.90kg
    Metal housing IP-30
    Dimensions 135x125x99mm

More information can be found in the product catalog

Instructions, CE and DWG files available only to logged in users
